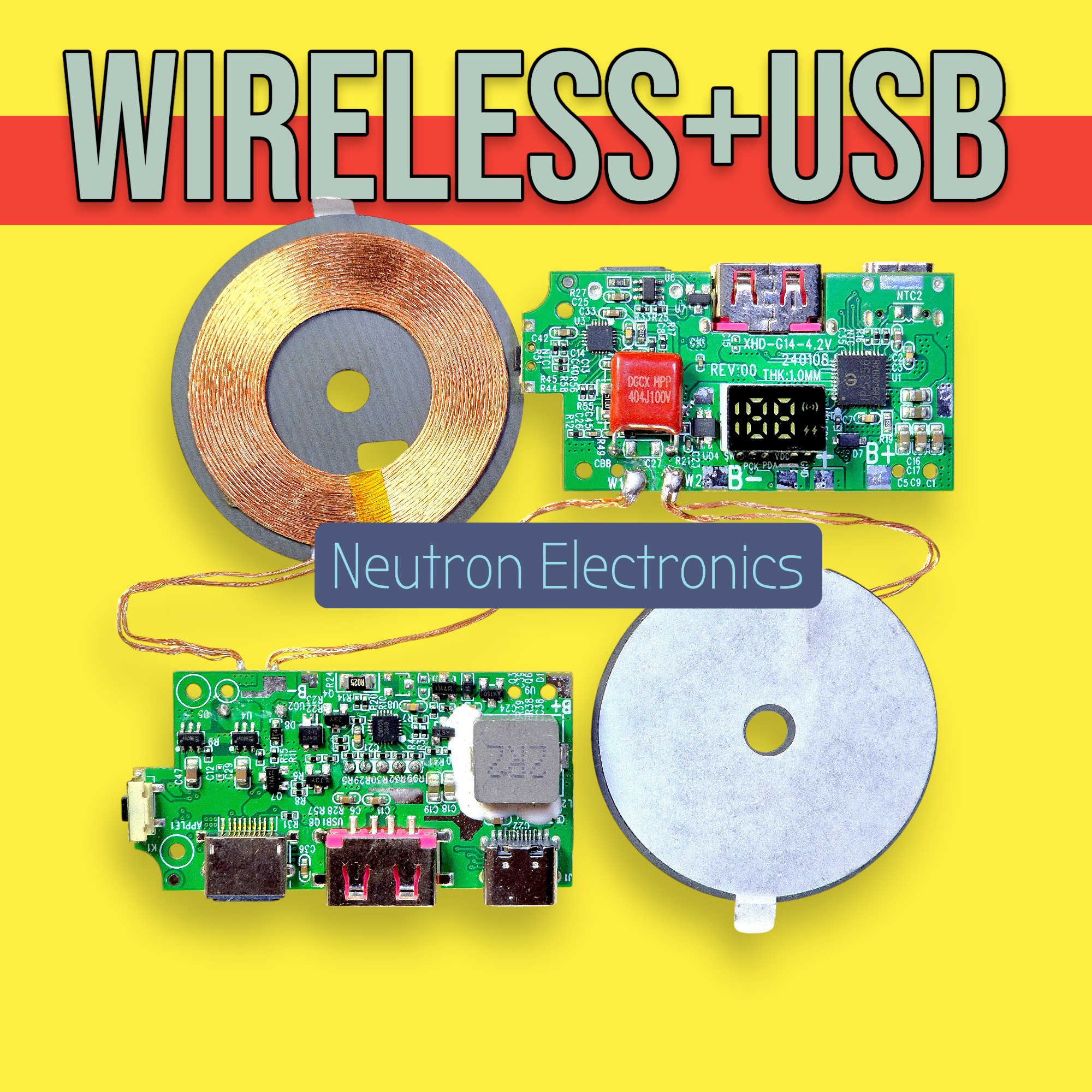

IP5356 USB + Fast Wireless Charge Module

380 BDT

Add to cartBuy now

Fast Wireless & Wired Charging Module

Powered by IP5356 Intelligent Power Management Chip

Product Overview

This high-performance fast charging module is built around the advanced IP5356 power management chipset, designed to deliver reliable, efficient, and highly compatible charging solutions for today’s smartphones and smart devices. Engineered for both wired and wireless charging, the module supports up to 22W fast USB output and 15W Qi wireless charging, making it suitable for professional DIY projects, commercial product development, and advanced repair or replacement applications.

Key Features & Capabilities

🔌 High-Speed Wired Charging Performance

1. Maximum USB Output Power: Up to 22W fast charging
2. Core Controller: IP5356 intelligent power management IC
3. Dual USB Outputs: Two USB-A ports allow simultaneous charging of multiple devices
4. Smart Power Negotiation: Automatically detects the connected device and adjusts voltage and current accordingly
5. Universal Device Support: Compatible with smartphones, tablets, power banks, wireless earbuds, smartwatches, and other USB-powered electronics

📱 Proprietary Fast-Charging Protocol Support

This module is engineered to support fast-charging technologies that are rarely available on third-party charging boards, including:

1. OPPO VOOC Flash Charge
2. OnePlus DASH Charge
3. OnePlus WARP Charge
4. Qualcomm Quick Charge
5. USB Power Delivery (PD)

By supporting these protocols, the module can deliver significantly faster charging speeds to compatible devices compared to standard USB charging modules, while maintaining full backward compatibility with non-fast-charge devices.

⚡ Integrated Wireless Charging (Qi Standard)

1. Wireless Output Power: Up to 15W
2. Qi-Compatible: Works with all Qi-enabled smartphones
3. Large Copper Induction Coil: Enhances power transfer efficiency and charging stability
4. Ferrite Shielding: Reduces electromagnetic interference and improves safety
5. Foreign Object Detection (FOD): Automatically detects metal objects and prevents unsafe charging

The wireless charging system is ideal for building modern, cable-free charging solutions while still providing fast wired charging as a backup option.

🛡️ Comprehensive Safety & Protection System

To ensure long-term reliability and user safety, the module integrates multiple layers of protection:

1. Over-current protection
2. Over-voltage protection
3. Over-temperature protection
4. Short-circuit protection
5. Wireless foreign object detection
6. Intelligent power cutoff during fault conditions

These protections safeguard both the charging module and connected devices, making it suitable for continuous daily use.

Technical Specifications

1. Power Management IC: IP5356
2. Maximum Wired Output: 22W
3. Maximum Wireless Output: 15W (Qi standard)
4. Input Interface: USB Type-C
5. Output Interfaces: 2 × USB-A
6. Supported Charging Protocols: VOOC, DASH, WARP, Quick Charge, USB Power Delivery
7. Wireless Standard: Qi-compatible
8. Display Indicator: LED real-time power status display
9. Operating Temperature Range: 0°C to 45°C
10. Recommended Use: Indoor, well-ventilated environments

Device Compatibility

Smartphones with Built-in Wireless Charging

Apple iPhone Series

1. iPhone 15, 15 Plus, 15 Pro, 15 Pro Max
2. iPhone 14, 14 Plus, 14 Pro, 14 Pro Max
3. iPhone 13 series, iPhone 12 series

Samsung Galaxy Series

1. Galaxy S24, S23, S22, S21 series
2. Galaxy Note 20, Note 10 series
3. Galaxy Z Fold & Z Flip series

Google Pixel

1. Pixel 8, 7, 6, 5 series

OnePlus (VOOC / DASH / WARP)

1. OnePlus 12, 11, 10, 9, 8, 7, 6 series

OPPO (VOOC)

1. Find X series, Reno series, supported A series models

Xiaomi

1. Xiaomi 14, 13, 12, 11 series
2. Mix series and foldable models

Other Brands

1. Huawei Mate & P series
2. Sony Xperia series
3. LG V60, LG Wing
4. Motorola Edge & Razr series

Wired Fast-Charging Compatibility

1. All USB-charged smartphones and accessories
2. Enhanced fast charging for VOOC, DASH, WARP, QC, and PD-enabled devices

Typical Applications

✅ Custom DIY power banks

✅ Desktop or bedside multi-device charging stations

✅ Automotive wireless charging systems

✅ Electronics prototyping and product development

✅ Repair or replacement of damaged charging boards

✅ Educational and engineering projects

Important Usage Notes

⚠️ Wireless charging requires Qi-compatible devices

⚠️ Maximum charging power depends on device protocol support

⚠️ Adequate heat dissipation is recommended for high-power use

⚠️ Use a quality USB-C power adapter capable of supplying sufficient wattage
